4" Piston Valve - NPT X NPT, (60 PSI)
9Lbs
4" Piston Valve - NPT X NPT, w/ air cylinder
17Lbs
4" Piston Valve - NPT X NPT, w/ hyd cylinder
21Lbs
6" Piston Valve - NPT MZ, (60 PSI)
24Lbs
6" Piston Valve w/air cylinder
29Lbs
6" Piston Valve w/ hyd cylinder
4" 4-Bolt Flange Piston Valve
4" 4-Bolt Flange Valve w/ air cyl
6" 4-Bolt Flange Piston Valve
28Lbs
6" 4-Bolt Flange valve w/ air cyl
6" 4-Bolt Flange valve w/ hyd cyl
8" 4-Bolt Flange Piston Valve
8" 4-Bolt Flange Piston Valve w/ air cyl
8" 4-Bolt Flange Piston Valve w/ hyd dbl
acting cyl
4-Bolt Flange Plate with 4" hole
3Lbs
4-Bolt Flange Plate with 6" hole
4" 4-Bolt Flange Valve w/ Stainless Steel Disc (60 PSI)
15Lbs
4" 4-Bolt Flange Valve w/ Stainless Steel Disc w/ air cylinder
22Lbs
4" 4-Bolt Flange Valve w/ Stainless Steel Disc w/ hyd cylinder
6" 4-Bolt Flange Valve w/ Stainless Steel Disc (60 PSI)
23Lbs
6" 4-Bolt Flange Valve w/ Stainless Steel Disc w/ air cylinder
31Lbs
4-Bolt Flange Plate with 4" Hole
4-Bolt Flange Plate with 6" Hole

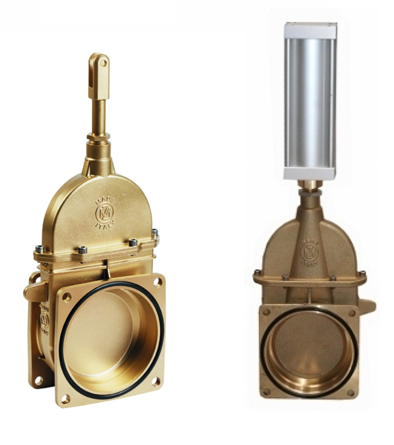

1/2" NPT Ports for Coolant
Sizes: 6"
Stainless Steel Heating Tube Cast within Body
Durable Brass Construction
All parts, except for the lower body are interchangeable

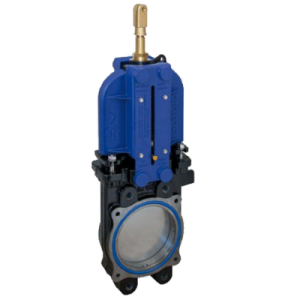

Cast iron valve with cutting action 304 gate
O-ring Gaskets
Flange ANSI 150
Sizes: 6", 8" and 10"
Max Psi: 145 (6"), 120 (8") and 100 (10")
Weight (lbs): 47.69 (6"), 66.54 (8") & 116.94 (10")

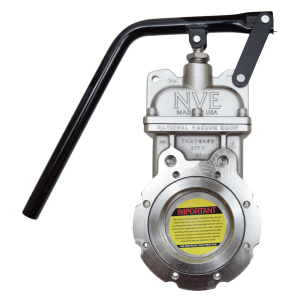

Available in 4″ and 6″ sizes
Steel or stainless steel body; stainless steel stem, seat, gate, and guide are standard
Viton seals standard; Viton o-ring seal on seat; other o-ring materials available
Completely re-buildable and self-cleaning; accepts TTMA and ANSI flanges
MAWP 100 PSI: burst pressure greater than 400 PSI

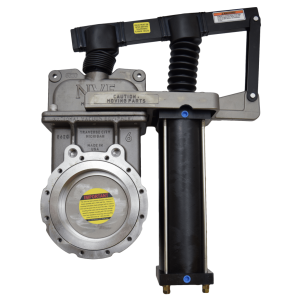

Dual gate version available for applications requiring horizontal mounting or with high contents of solids
Viton seals standard, Viton o-ring seal on seat, other o-ring materials available
Completely re-buildable and self-cleaning, accepts TTMA and ANSI flanges
MAWP 100 PSI, burst pressure greater than 400 PSI
Dual gate version available for applications requiring horizontal mounting or with high contents of solids.

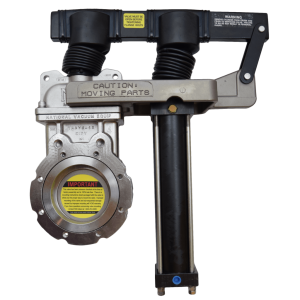

Actuator assembly features stainless steel bracket and fasteners, powder coat painted parts
Replacement seals, and a million-cycle spring
Maximum cylinder operating pressure 500 PSI
Side or Top Mount Cylinder
Indicator is available with 6"
